Bidirectional Predictive Coding

This notebook demonstrates how to train a bidirectional predictive coding network (BPC; Olivers et al., 2025) that can both generate and classify MNIST digits.

Note: BPC has the same architecture as a hybrid PC network (HPC; Tschantz et al., 2023), but the neural (inference) dynamics are driven by both top-down and bottom-up prediction errors. By contrast, in HPC the amortiser (or bottom-up network) only serves to initialise the inference dynamics.

python %%capture !pip install torch==2.3.1 !pip install torchvision==0.18.1 !pip install matplotlib==3.0.0

```python import jpc

import jax import jax.numpy as jnp import equinox as eqx import optax

import torch from torch.utils.data import DataLoader from torchvision import datasets, transforms

import matplotlib.pyplot as plt

import warnings warnings.simplefilter('ignore') # ignore warnings ```

Hyperparameters

We define some global parameters, including the network architecture, learning rate, batch size, etc.

```python SEED = 0

INPUT_DIM = 10 WIDTH = 256 DEPTH = 2 OUTPUT_DIM = 784 ACT_FN = "relu"

ACTIVITY_LR = 5e-1 PARAM_LR = 1e-3 BATCH_SIZE = 64 TEST_EVERY = 50 N_TRAIN_ITERS = 300 ```

Dataset

Some utils to fetch MNIST.

```python def get_mnist_loaders(batch_size): train_data = MNIST(train=True, normalise=True) test_data = MNIST(train=False, normalise=True) train_loader = DataLoader( dataset=train_data, batch_size=batch_size, shuffle=True, drop_last=True ) test_loader = DataLoader( dataset=test_data, batch_size=batch_size, shuffle=True, drop_last=True ) return train_loader, test_loader

class MNIST(datasets.MNIST): def init(self, train, normalise=True, save_dir="data"): if normalise: transform = transforms.Compose( [ transforms.ToTensor(), transforms.Normalize( mean=(0.1307), std=(0.3081) ) ] ) else: transform = transforms.Compose([transforms.ToTensor()]) super().init(save_dir, download=True, train=train, transform=transform)

def __getitem__(self, index):
    img, label = super().__getitem__(index)
    img = torch.flatten(img)
    label = one_hot(label)
    return img, label

def one_hot(labels, n_classes=10): arr = torch.eye(n_classes) return arr[labels]

def plot_mnist_imgs(imgs, labels, n_imgs=10): plt.figure(figsize=(20, 2)) for i in range(n_imgs): plt.subplot(1, n_imgs, i + 1) plt.xticks([]) plt.yticks([]) plt.grid(False) plt.imshow(imgs[i].reshape(28, 28), cmap=plt.cm.binary_r) plt.xlabel(jnp.argmax(labels, axis=1)[i]) plt.show() ```

Train and test

```python def evaluate(generator, amortiser, test_loader): amort_accs = 0. for _, (img_batch, label_batch) in enumerate(test_loader): img_batch, label_batch = img_batch.numpy(), label_batch.numpy()

    preds = jpc.init_activities_with_ffwd(
        model=amortiser[::-1],
        input=img_batch
    )[-1]
    amort_accs += jpc.compute_accuracy(label_batch, preds)

img_preds = jpc.init_activities_with_ffwd(
    model=generator,
    input=label_batch
)[-1]

return (
    amort_accs / len(test_loader),
    label_batch,
    img_preds
)

def train( seed, input_dim, width, depth, output_dim, act_fn, batch_size, activity_lr, param_lr, test_every, n_train_iters, forward_energy_weight=1.0 ): key = jax.random.PRNGKey(seed) gen_key, amort_key = jax.random.split(key, 2)

# models (NOTE: input and output are inverted for the amortiser)
generator = jpc.make_mlp(
    gen_key,
    input_dim=input_dim,
    width=width,
    depth=depth,
    output_dim=output_dim,
    act_fn=act_fn
)
amortiser = jpc.make_mlp(
    amort_key,
    input_dim=output_dim,
    width=width,
    depth=depth,
    output_dim=input_dim,
    act_fn=act_fn
)[::-1]

# optimisers
activity_optim = optax.sgd(activity_lr)
gen_optim = optax.adam(param_lr)
amort_optim = optax.adam(param_lr)

gen_opt_state = gen_optim.init(eqx.filter(generator, eqx.is_array))
amort_opt_state = amort_optim.init(eqx.filter(amortiser, eqx.is_array))

# data
train_loader, test_loader = get_mnist_loaders(batch_size)

for iter, (img_batch, label_batch) in enumerate(train_loader):
    img_batch, label_batch = img_batch.numpy(), label_batch.numpy()

    # discriminative loss & initialisation
    activities = jpc.init_activities_with_ffwd(
        model=amortiser[::-1],
        input=img_batch
    )
    amort_loss = jpc.mse_loss(activities[-1], label_batch)
    activity_opt_state = activity_optim.init(activities)

    # generative loss
    gen_activities = jpc.init_activities_with_ffwd(
        model=generator,
        input=label_batch
    )
    gen_loss = jpc.mse_loss(gen_activities[-1], img_batch)

    # inference
    for _ in range(depth - 1):
        activity_update_result = jpc.update_bpc_activities(
            top_down_model=generator,
            bottom_up_model=amortiser,
            activities=activities,
            optim=activity_optim,
            opt_state=activity_opt_state,
            output=img_batch,
            input=label_batch,
            forward_energy_weight=forward_energy_weight
        )
        activities = activity_update_result["activities"]
        activity_opt_state = activity_update_result["opt_state"]

    # learning
    param_update_result = jpc.update_bpc_params(
        top_down_model=generator,
        bottom_up_model=amortiser,
        activities=activities,
        top_down_optim=gen_optim,
        bottom_up_optim=amort_optim,
        top_down_opt_state=gen_opt_state,
        bottom_up_opt_state=amort_opt_state,
        output=img_batch,
        input=label_batch,
        forward_energy_weight=forward_energy_weight
    )
    generator, amortiser = param_update_result["models"]
    gen_opt_state, amort_opt_state  = param_update_result["opt_states"]

    if ((iter+1) % test_every) == 0:
        amort_acc, label_batch, img_preds = evaluate(
            generator,
            amortiser,
            test_loader
        )
        print(
            f"Iter {iter+1}, gen loss={gen_loss:4f}, "
            f"amort loss={amort_loss:4f}, "
            f"avg amort test accuracy={amort_acc:4f}"
        )

        if (iter+1) >= n_train_iters:
            break

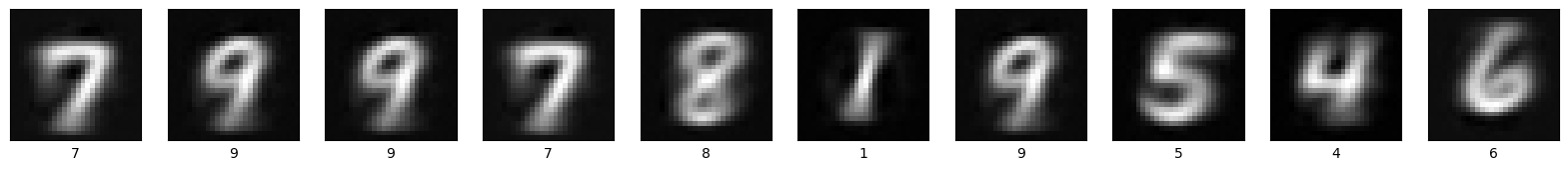

plot_mnist_imgs(img_preds, label_batch)

```

Run

python train( seed=SEED, input_dim=INPUT_DIM, width=WIDTH, depth=DEPTH, output_dim=OUTPUT_DIM, act_fn=ACT_FN, batch_size=BATCH_SIZE, activity_lr=ACTIVITY_LR, param_lr=PARAM_LR, test_every=TEST_EVERY, n_train_iters=N_TRAIN_ITERS )

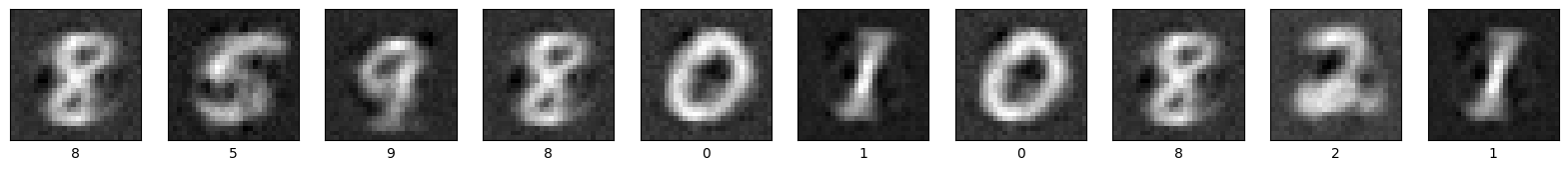

Iter 50, gen loss=0.432310, amort loss=0.030540, avg amort test accuracy=69.821716 Iter 100, gen loss=0.388198, amort loss=0.024098, avg amort test accuracy=80.929489 Iter 150, gen loss=0.383346, amort loss=0.026668, avg amort test accuracy=83.203125 Iter 200, gen loss=0.350278, amort loss=0.019336, avg amort test accuracy=84.354965 Iter 250, gen loss=0.365861, amort loss=0.020387, avg amort test accuracy=85.236382 Iter 300, gen loss=0.315536, amort loss=0.020807, avg amort test accuracy=85.376602

To achieve SOTA classification performance, Olivers et al., 2025 showed that one can simply decrease the relative weight of the forward energies (tied to generation), or equivalently, upweight the backward energies (tied to classification). We reproduce this below by downscaling the forward energies by a factor of \(\alpha_f = 1e^{-3}\).

python train( seed=SEED, input_dim=INPUT_DIM, width=WIDTH, depth=DEPTH, output_dim=OUTPUT_DIM, act_fn=ACT_FN, batch_size=BATCH_SIZE, activity_lr=ACTIVITY_LR, param_lr=PARAM_LR, test_every=TEST_EVERY, n_train_iters=N_TRAIN_ITERS, forward_energy_weight=1e-3 )

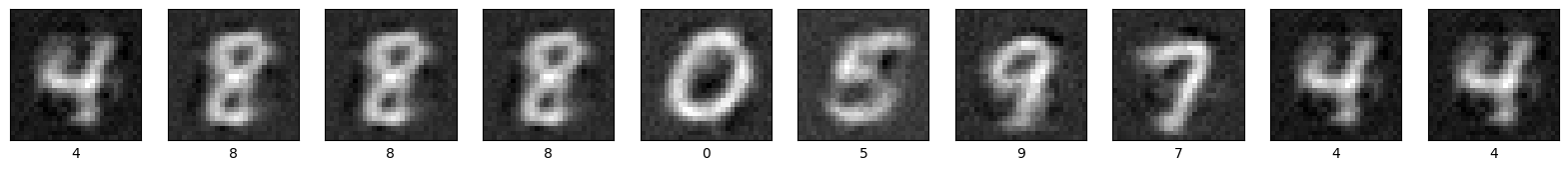

Iter 50, gen loss=0.388206, amort loss=0.017003, avg amort test accuracy=90.174278 Iter 100, gen loss=0.408145, amort loss=0.013181, avg amort test accuracy=91.796875 Iter 150, gen loss=0.415482, amort loss=0.009785, avg amort test accuracy=93.800079 Iter 200, gen loss=0.401330, amort loss=0.010149, avg amort test accuracy=93.970352 Iter 250, gen loss=0.383768, amort loss=0.010281, avg amort test accuracy=93.760017 Iter 300, gen loss=0.383873, amort loss=0.011300, avg amort test accuracy=94.020432
